Custom Templates

By default fields are presented in tabular form, e.g. one field per row in Add/Edit/Search/View page, or one record per row in List/Delete page. Custom Templates enable you to re-arrange the fields in your own way.

Note Do not confuse Custom Template (which is a table level setting within a project) with customizing the whole template package. If you want to customize the general layout of the generated site or customize something for all tables and all projects, you should customize the template package, see Customizing Template.

How it Works

If a Custom Template is provided, PHPMaker splits the original code in many small client side templates enclosed by <template> tags so it is possible to re-assemble HTML from the small client side templates by JavaScript based on your provided Custom Template. In other words, it is simply re-arrangement of existing HTML parts in browser.

During script generation, PHPMaker converts your Custom Template to a client side template and outputs JavaScript to render the template. The client side template is further rendered by JsRender (see Third-Party Tools) which is a third-party JavaScript template engine optimized for high-performance pure string-based rendering. Your Custom Template can make use of its features to display the field values.

What it Can Do (and Cannot Do)

Custom Templates let you customize the layout of the fields originally placed in the main HTML table of the page, they cannot customize HTML outside those regions. The customizable regions are highlighted as follows:

Custom Template also supports Summary Report (but not Crosstab Report):

Custom Template Tags

To let you create your Custom Templates easily, PHPMaker supports the following Custom Template Tags. Since JsRender template tags use {{ and }} (double curly brackets), in order to let you use them in your Custom Templates, PHPMaker Custom Template Tags use {{{ and }}} (triple curly brackets) to differentiate.

In the following table, field represents the field variable name, see Tools -> Database, Table and Field Variable Names.

IMPORTANT

Remember that Custom Template is rearrangement of existing HTML fragments in the page. Most of the following tags output HTML markup for the field in the page, NOT plain text or numeric values.
Custom Template Tags can only be used in PHPMaker user interface, they cannot be used anywhere else.

{{{field}}}	Field caption, value or other values, depending on where it is used: List/Delete page CustomTemplateHeader - field caption (supports sorting) CustomTemplateBody - field value only CustomTemplateFooter - field aggregate value Search page/Extended Search panel - field caption + search operator + search value (+ search condition + search operator 2 + search value 2) Other pages - field caption + field value
{{{caption field}}}	Field caption
{{{header field}}}	Field header (caption with sort links)
{{{value field}}}	Field value (or input) without caption.
{{{dbvalue field}}}	Field raw value from database, NOT HTML. The value is straight from database and is unformatted. For use in CustomTemplateBody (List/Delete pages), CustomTemplateHeader/Body/Footer (Summary pages) or in CustomTemplate (other pages) only. NOT applicable to other Custom Templates. NOT applicable to Add/Search/Register pages since there are no database values in those pages. Important Notes ALWAYS use JsRender template tags together with this tag, e.g. {{: {{{dbvalue field}}} }}, see more examples below. For List/Delete/Summary pages, since there are more than one records, the field value will be outputted as data path using JsRender's built-in '~root' contextual parameter. Using this tag is recommended. For other pages (e.g. View page), since there is only one record, although you may still use this tag, it is possible (and better) to use JsRender template tags directly, e.g. you can use either {{: {{{dbvalue field}}} }} or preferably {{:field}}. Unlike other tags, you can even use this tag for fields not selected for that page. However, NOT all fields are available, by default only short string, numeric, date, time and boolean fields are included. Date and time field values are string, if you need to do some manipulation, you need to convert the data type first. In such cases, using JsRender converters is recommended, see Using converters. You can also register your own converters in CLIENT side Global Code. Example 1 - Output the field value directly {{: {{{dbvalue field}}} }} Example 2 - Output the field value with JavaScript method of the data type with JsRender {{:...}} tag. {{: {{{dbvalue field}}}.toUpperCase() }} Example 3 - Output HTML-encoded field value with JsRender HTML-encode tag {{>...}}. {{> {{{dbvalue field}}} }} Example 4 - Output field value with JsRender built-in URL encoder {{url:...}}. <img src='{{url: {{{dbvalue field}}} }}'/> Example 5 - Output field value with JsRender built-in attribute encoder {{attr:...}}. <div title='{{attr: {{{dbvalue field}}} }}'>...</div> Example 6 - Output field value with JsRender {{if ...}} and {{else ...}} tags. {{if {{{dbvalue field}}} == "Y" }}Yes{{else {{{dbvalue field}}} == "N" }}No{{else}}Unknown{{/if}}
{{{value2 field}}}	Search value 2. For use with Search page or Extended Search panel only.
{{{operator field}}}	Search operator. For use with Search page or Extended Search panel only.
{{{operator2 field}}}	Search operator 2. For use with Search page or Extended Search panel only.
{{{condition field}}}	Search condition. For use with Search page or Extended Search panel only.
{{{cell_attrs field}}}	Cell attributes for the field in the current row (originally for the <td> tag of the field). For use in List/Delete/Report page only.
{{{list_options}}} or {{{list_options n}}}	List options with <td> tags. Each list option is enclosed by "<td>" and "</td>". For use in List page only. n is the "rowspan" attribute of the <td> tag and it is optional. If not specified, default is 1.
{{{list_options_2}}}	List options with <span> tags. Each list option is enclosed by "<span>" and "</span>". For use in CustomTemplateBody (List Page) only.
{{{list_option xxx}}}	List options with name xxx. For use in CustomTemplateBody (List Page) only. Possible values of xxx are same as those used in server events, i.e. copy delete edit checkbox preview - for use with Preview extension (for registered users) only, or detail_<DetailTable> - NOT for use with Preview extension (for registered users)
{{{page_n}}}...{{{/page_n}}}	Multi-Page template tag for page n. The content inside the tags is the Custom Template for page n. Note For use with Multi-Page (see Table Setup ) only. No need to use this tag if single page.
{{{row_attrs}}}	Current row attributes (originally for the <tr> tag of the record) . For use in List/Delete page only.
{{{row_index}}} or {{{row_cnt}}}	Current row index (1-based). For use in List/Delete page only. This tag will be rendered as an integer only, so it is possible that you output it inside {{if...}} tag to render conditionally, e.g. {{if {{{row_index}}} == 1}} render this for the first row {{else {{{row_index}}} == 2}} else render this for the second row {{else}} else render this {{/if}}
{{{confirm_password}}}	Text input (with caption) for password confirmation. For use in Registration Page only.
{{{value confirm_password}}}	Text input (without caption) for password confirmation. For use in Registration Page only.

Summary reports support the following tags only:

{{{field}}}	Field caption or value, depending on where it is used: CustomTemplateHeader - field caption (supports sorting) CustomTemplateGroupHeader<n> - field value only CustomTemplateBody - field value only
{{{caption field}}}	Field caption
{{{value field}}}	Field value
{{{count}}}	Number of detail records in the group. This tag will be rendered as an integer.
{{{row_index}}} or {{{row_cnt}}}	The row index (1-based) of the detail record in the group. This tag will be rendered as an integer.
{{{sum\|avg\|min\|max\|cnt field}}}	Field group summary value (Sum/Average/Minimum/Maximum/Count). For use in CustomTemplateFooter and CustomTemplateGroupFooter<n> only. Note There must be Grouping Levels (see Summary Report Setup) for this tag to work.
{{{pagesum\|pageavg\|pagemin\|pagemax\|pagecnt field}}}	Field page summary value (Sum/Average/Minimum/Maximum/Count). For use in CustomTemplateFooter only. Note The setting Show page summary (see Summary Report Setup) must be enabled for this tag to work.
{{{grandsum\|grandavg\|grandmin\|grandmax\|grandcnt field}}}	Field grand summary value (Sum/Average/Minimum/Maximum/Count). For use in CustomTemplateFooter only. Note The setting Show grand summary (see Summary Report Setup) must be enabled for this tag to work.
{{{current_filters}}}	Current filters of the report Note The advanced setting Show current filters or Show drill down filters must be enabled for this tag to work, see Advanced Settings.

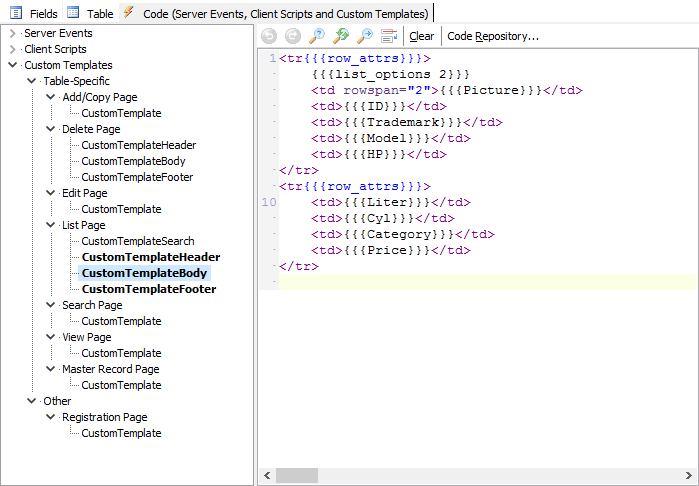

How to Use

To enter your Custom Template for a table, follow the following steps:

Select the table in the database pane,
Select the Code tab (which contains Server Events, Client Scripts and Custom Templates),

Scroll down the treeview or collapse the Server Events and Client Scripts node, select a template node under Custom Templates,

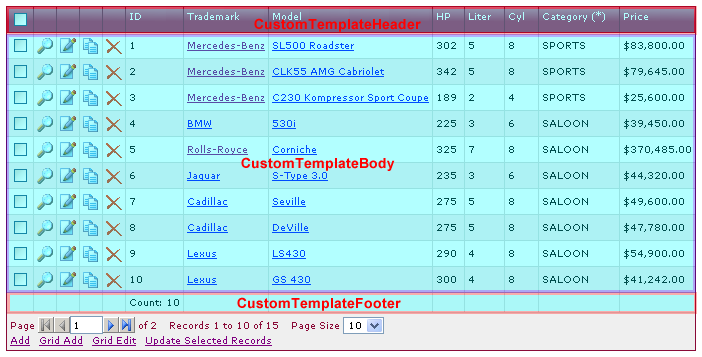

List/Delete Pages
CustomTemplateHeader	The header of the Custom Template. For example, you can place table header here.
CustomTemplateBody	This is the custom template body. You can place template for each row here.
CustomTemplateFooter	This is the custom template footer. For example, you can place table footer here.

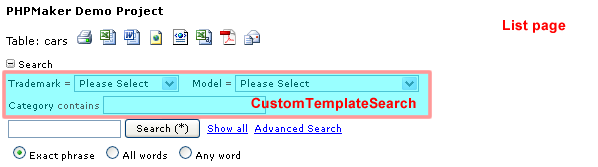

List Pages with Extended Search
CustomTemplateSearch	The Custom Template for Extended Search in List page, see Bootstrap Forms Layout or Grid system.
List Pages with Multiple Columns
CustomTemplateCard	The Custom Template for a single card in multi-column List page, e.g. <div class="card">...</div>, see Bootstrap Forms Cards.

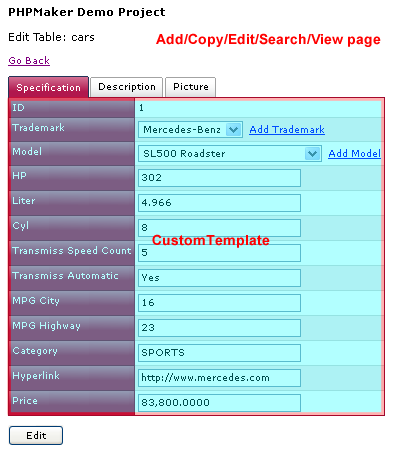

Other Pages
CustomTemplate	The Custom Template for the form content, see Bootstrap Forms Layout

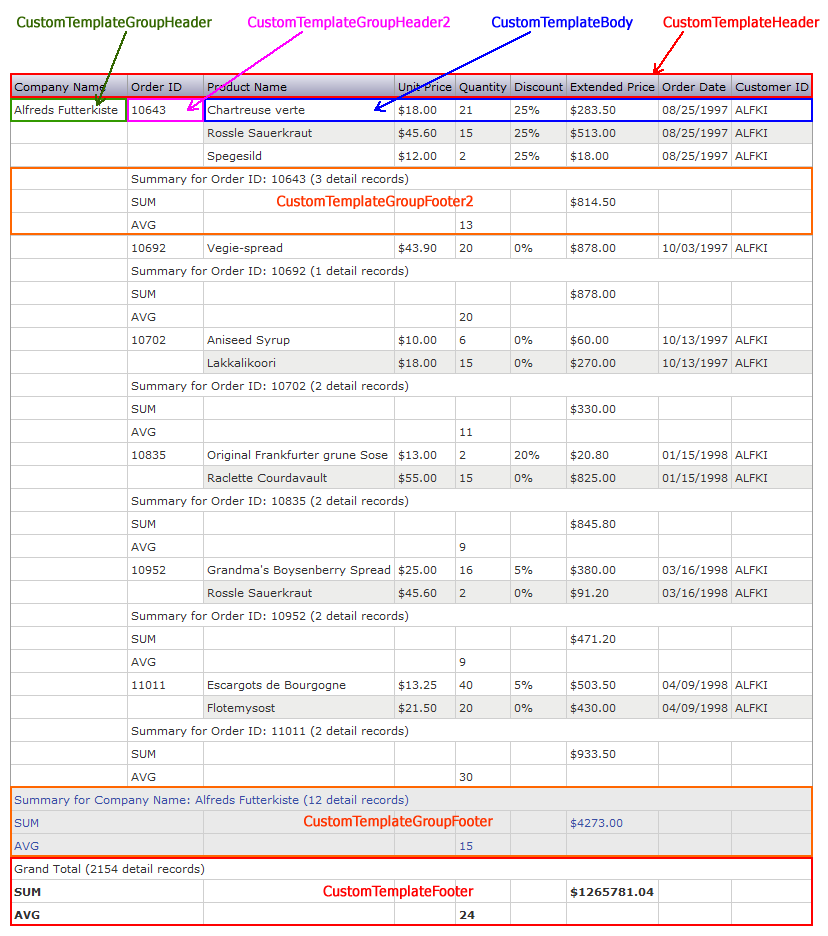

Summary Reports
CustomTemplateHeader	The header of the Custom Template. For example, you can place table header here.
CustomTemplateGroupHeader<n>	The header for the 1st to 6th group (where n = 2-6). For Summary reports only. You can put report group level information (such as group caption and value) in this section of the custom template. If you have two grouping fields in your reports, enter the custom templates for the two groups only.
CustomTemplateBody	This is the custom template body. You can place template for each row here.
CustomTemplateGroupFooter<n>	This is the group footer for the 1st to 6th group (where n = 2-6). For Summary reports only.
CustomTemplateFooter	This is the custom template footer. For example, you can place table footer here.

Enter your Custom Template in the editor.

Then just generate and run your scripts in your browser as usual.

Tips

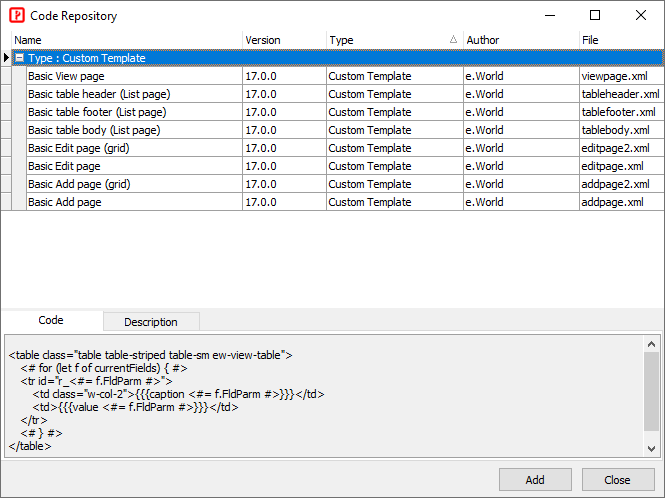

You can click Code Repository... to select a template and quickly generate a basic Custom Template for the page first, then customize the code to suit your needs.

You can add your own templates in the Code Repository, see Server Events and Client Scripts -> Code Repository for details.
In the editor, you can select some code, for example, {{{field}}} or {{{value field}}}, then right click and select Repeat for All Fields to quickly generate code for all fields. Note that the "field" in {{{xxx field}}} tags inside the selected text is literal "field", it is a placeholder to be replaced by actual field names in the table.
If you use the new editor, you can press Ctrl+Space or by typing a trigger character to get a list of field names for the current table. If you continue typing characters, the list of field names is filtered to only field names containing your typed characters. Pressing Tab or Enter will insert the selected field name.

Examples

Example 1 - Custom Template in Add/Edit/Search/View page or Extended Search in List page

{{{Trademark}}}&nbsp;{{{Model}}}<br>
{{{HP}}}&nbsp;{{{Liter}}}

If you want to have more control on the layout, use DIV and SPAN with CSS styles, e.g.

<div class="ew-row"><span class="ew-cell">{{{Trademark}}}</span><span class="ew-cell">{{{Model}}}</span></div>
<div class="ew-row"><span class="ew-cell">{{{HP}}}</span><span class="ew-cell">{{{Liter}}}</span></div>

or use a HTML table, e.g.

<table class="ew-table">
    <tbody>
        <tr><td>{{{Trademark}}}</td><td>{{{Model}}}</td></tr>
        <tr><td>{{{HP}}}</td><td>{{{Liter}}}</td></tr>
    </tbody>
</table>

Example 2 - Custom Template in Add/Edit/Search/View page (Multi-Page)

{{{page_1}}}
<div class="ew-row"><span class="ew-cell">{{{Trademark}}}</span><span class="ew-cell">{{{Model}}}</span></div>
<div class="ew-row"><span class="ew-cell">{{{HP}}}</span><span class="ew-cell">{{{Liter}}}</span></div>
{{{/page_1}}}
{{{page_2}}}
<div class="ew-row">{{{Description}}}</div>
{{{/page_2}}}
{{{page_3}}}
<div class="ew-row">{{{Picture}}}</div>
{{{/page_3}}}

Example 3 - Custom Template in List page using {{{list_options_2}}}

CustomTemplateHeader

<table class="ew-table">
    <tbody>

CustomTemplateBody

<tr{{{row_attrs}}}>
    <td>
        <div class="ew-row">
            <span class="ew-cell">
                <b>{{{caption Trademark}}}:</b>&nbsp;{{{Trademark}}} </span>
            <span class="ew-cell">
                <b>{{{caption Model}}}:</b>&nbsp;{{{Model}}} </span>
        </div>
        <div class="ew-row">
            <span class="ew-cell">
                <b>{{{caption HP}}}:</b>&nbsp;{{{HP}}} </span>
            <span class="ew-cell">
                <b>{{{caption Liter}}}:</b>&nbsp;{{{Liter}}} </span>
        </div>
        <div class="ew-row">{{{list_options_2}}}</div>
    </td>
</tr>

CustomTemplateFooter

    </tbody>
</table>

Example 4 - Show each record in 2 rows in List page using {{{list_options n}}} where n is the rowspan. Note: Do not confuse {{{list_options 2}}} with {{{list_options_2}}}.

CustomTemplateHeader

<table class="table ew-table">
    <thead>
        <tr class="ew-table-header">
            {{{list_options 2}}} <th>{{{Trademark}}}</th>
            <th>{{{Model}}}</th>
        </tr>
        <tr class="ew-table-header">
            <th>{{{HP}}}</th>
            <th>{{{Liter}}}</th>
        </tr>
    </thead>
    <tbody>

CustomTemplateBody

<tr{{{row_attrs}}}>
    {{{list_options 2}}} <td>{{{Trademark}}}</td>
    <td>{{{Model}}}</td>
</tr>
<tr{{{row_attrs}}}>
    <td>{{{HP}}}</td>
    <td>{{{Liter}}}</td>
</tr>

CustomTemplateFooter

    </tbody>
</table>

Example 5 - Custom Template in Multi-Column List Page

CustomTemplateCard

<div class="card h-100">
  <div class="row g-0">
    <div class="col-md-6">
      {{{value Picture}}}
    </div>
    <div class="col-md-6">
      <div class="card-body">
        <h5 class="card-title">{{{value Model}}}</h5>
        <p class="card-text"><small class="text-muted">{{{value Trademark}}}</small></p>
        <p class="card-text">{{{value HP}}}</p>
        <p class="card-text">{{{value Price}}}</p>
      </div>
    </div>
  </div>
</div>

Result:

Example 6 - Custom Template for report

See Tutorial - Custom Template for Summary Report.

You can also add global helper functions to ew.jsRenderHelpers object. Also see Using helpers for more information.

Important Notes

Remember that Custom Template is rearrangement of existing HTML fragments in the page, all other code is still the same, the fields in the Custom Template cannot be more than the original script. The available fields are same as the original script, if you try to include other fields in the table or from other table by Custom Template, it will NOT work. Although it is allowed, It is NOT recommended to put the same field more than once in the Custom Template, otherwise there will be duplicate HTML element with the same ID and name, breaking the original server/client side code. For example, any JavaScript code relying on selecting the element by ID, e.g. document.getElementByID(), will only select the first one. If Add/Copy/Edit/Register page, the field value will be submitted twice. You'll need to handle all these problems caused by duplicate HTML elements yourself. In Add/Copy/Edit/Register page, if a field is missing, no field value is submitted but the generated scripts contain code for the field, unwanted results may occur, for example, if a field is missing in the Edit page, the field value in the table will be cleared after editing. If Multi-Page (see Table Setup) is enabled for the page, the Custom Templates should include templates for all pages using {{{page_n}}} and {{{/page_n}}}, and each field must be placed in the same page as in the original script.
Custom Template is HTML, if you want to embed PHP code, you need to use <?php and ?> to enclose your code, if you want to use JavaScript, you need to use <script> and </script>.
DO NOT use $this in your PHP code. There is no $this in the context, you can however use CurrentPage() to get the current page object.
In List page, CustomTemplateBody is the template for a record. Your Custom Template needs NOT to be a HTML table, but if it is (see the example above), then CustomTemplateHeader and CustomTemplateFooter must at least contains <table> and </table> respectively, and you need to provide the <tr> and <td> tags in these templates. If the table uses Aggregate values (see Field Setup), you should also include <tfoot> in your CustomTemplateFooter. If you want to use the PreviewRow extension (for registered users only), your Custom Template must be a HTML table because the extensions works by inserting a preview row in the table, and in CustomTemplateBody each <tr> row must contain the attribute data-rowindex="{{{row_cnt}}}" or {{{row_attrs}}} as the extension needs the row index for inserting a row below it. The row index attribute is also required for alternating/selected/highlighted row colors. Basic sample code of CustomTemplateHeader/Body/Footer can be found in Code Repository (below the editor).
In List page, there are more than one records, do NOT try to access a field by PHP code (e.g. CurrentPage()->MyField->CurrentValue), it will not work as it only refers to LAST row in the page.
Before the Custom Template is applied, the jQuery event "rendertemplate" will be fired, you can use Client Script of the page (see Server Events and Client Scripts) to subscribe this event and pass custom data to the Custom Template, e.g.
$(document).on("rendertemplate", (e, args) => { if (args.template && args.data) args.data.myVar = "myValue"; });
Custom Template does NOT support the following:
- Export to CSV/HTML/XML/PDF and Export to Excel (the data is exported in original tabular format)
- Add Blank Row in Grid-Add/Edit
- Detail grid in Master/Detail-Add/Edit/View
- Crosstab reports
Custom Template supports Printer-Friendly/Export to Excel/Word/Email. Note that Export to Excel/Word works by letting Word/Excel to import the exported HTML, so make sure your Custom Template is simple enough for Word/Excel to import. When exporting summary reports with Custom Template, only tables with class ew-table will be exported. Make sure you put your content in tables with class="ew-table". For PHPWord and Dompdf extension (see Extensions), by default tables are exported with border, if you want no border, add the class no-border to the table. When Export to Email, the exported HTML will be rendered by email clients which render HTML email content differently, the result may vary with email client. In general, keep your Custom Template simple and stupid for export. You can even output different Custom Template according to export type, e.g.
<?php if (IsExport("excel")) { ?>
...template for Excel...
<?php } elseif (IsExport("word")) { ?>
...template for Word...
<?php } ?>
Custom Template will override Page_Loading, Row_Export and Page_Exported server events, you can however use Page_Load server event to disable using Custom Template for export, see Server Events and Client Scripts.
